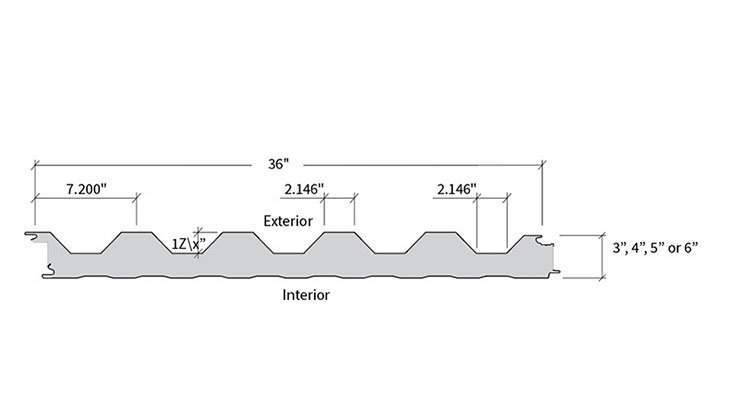

The 7.2 Insul-Rib™ insulated metal wall panel combines a traditional 7.2 rib panel design with a polyurethane foam core. This widely used profile is available as an insulated panel in various thicknesses. The metal and foam composite construction creates a rigid panel far stronger than the individual parts. This increases the span capability of the panel and reduces the need for secondary structural components.
Width: Nominal 36″
Thickness: 3″, 4″, 5″, 6″
Exterior Face: Stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.
Interior Face: Mesa profile, stucco-embossed, G-90 galvanized and/or AZ-50 aluminum-zinc coated steel in 26, 24 and 22 Ga.
Joint: Offset double tongue-and-groove with extended metal shelf for positive face fastening
Ratings: Standard FM Approved Class 1 foam core and offers excellent insulating values.
